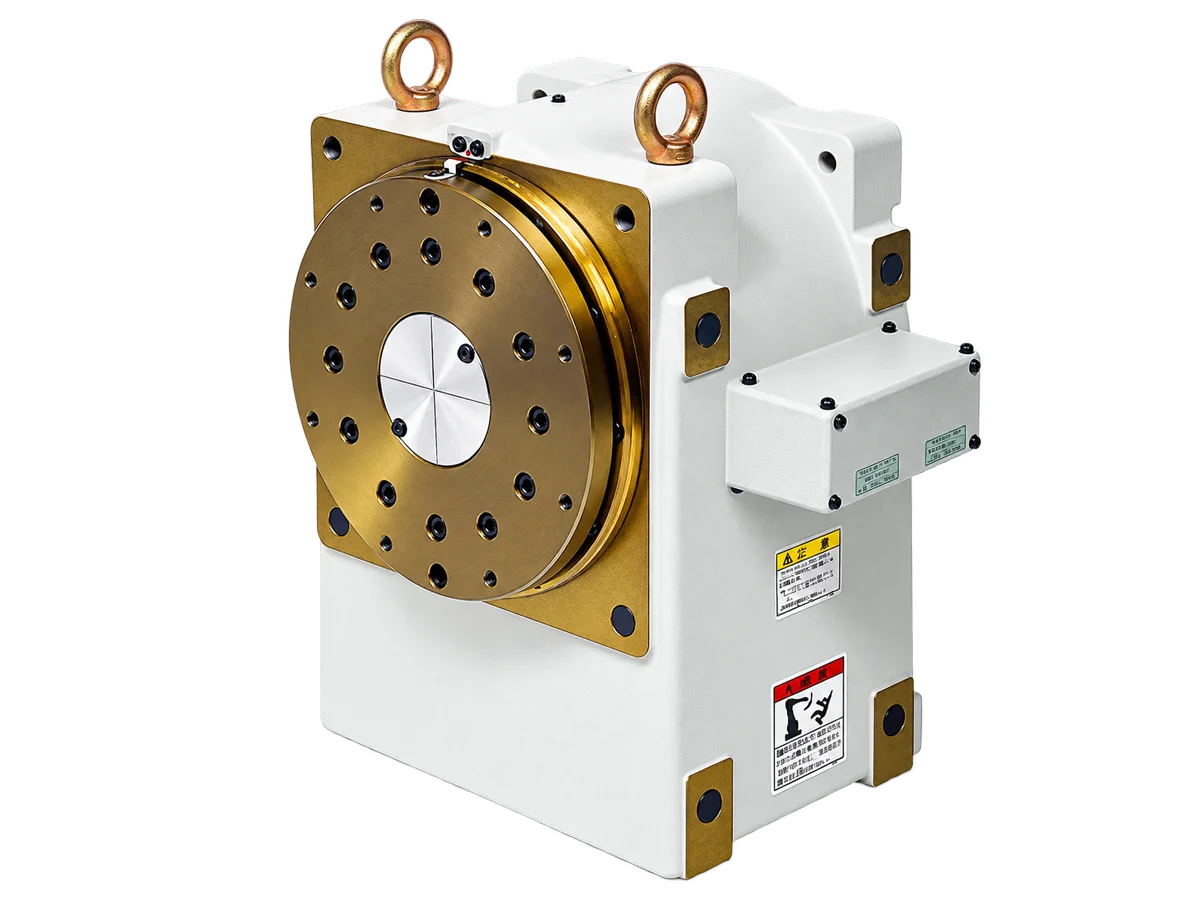

PB250
Single-axis workpiece rotation with universal mounting in any orientation.
Load capacity: 250 kg
Enquire
PRECISION POSITIONING
Positioners & External Axes
Expand your robot's capabilities with OTC DAIHEN's integrated positioners, linear tracks and external-axis systems. Engineered for coordinated motion, these solutions extend working reach, improve weld accessibility and support efficient automated production.
Discuss Positioners & External Axes
SINGLE-AXIS POSITIONING
PB Series — Single-Axis Positioners
Rotate the workpiece to improve welding orientation and joint accessibility. PB positioners can be mounted in any orientation, with three load capacities available.
COMPACT SINGLE-AXIS POSITIONING

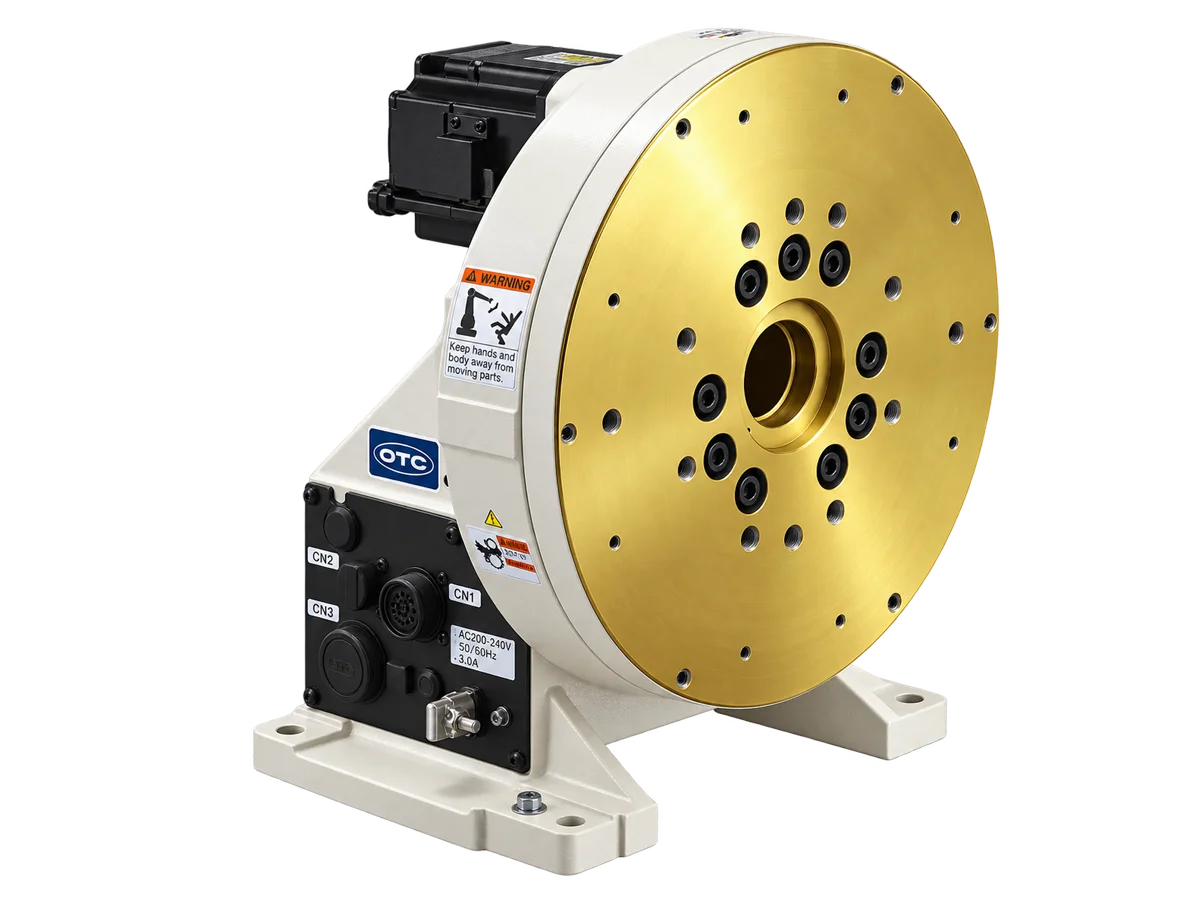

PC Series — Compact Single-Axis Positioners
The PC Series provides single-axis workpiece positioning in a compact format, with two load-capacity options for robotic welding applications.
TILT-AND-ROTATE POSITIONING
PF Series — Dual-Axis Positioners
Combine tilting and rotation to present weld joints to the torch. The PF Series adds positioning flexibility across three load-capacity options.

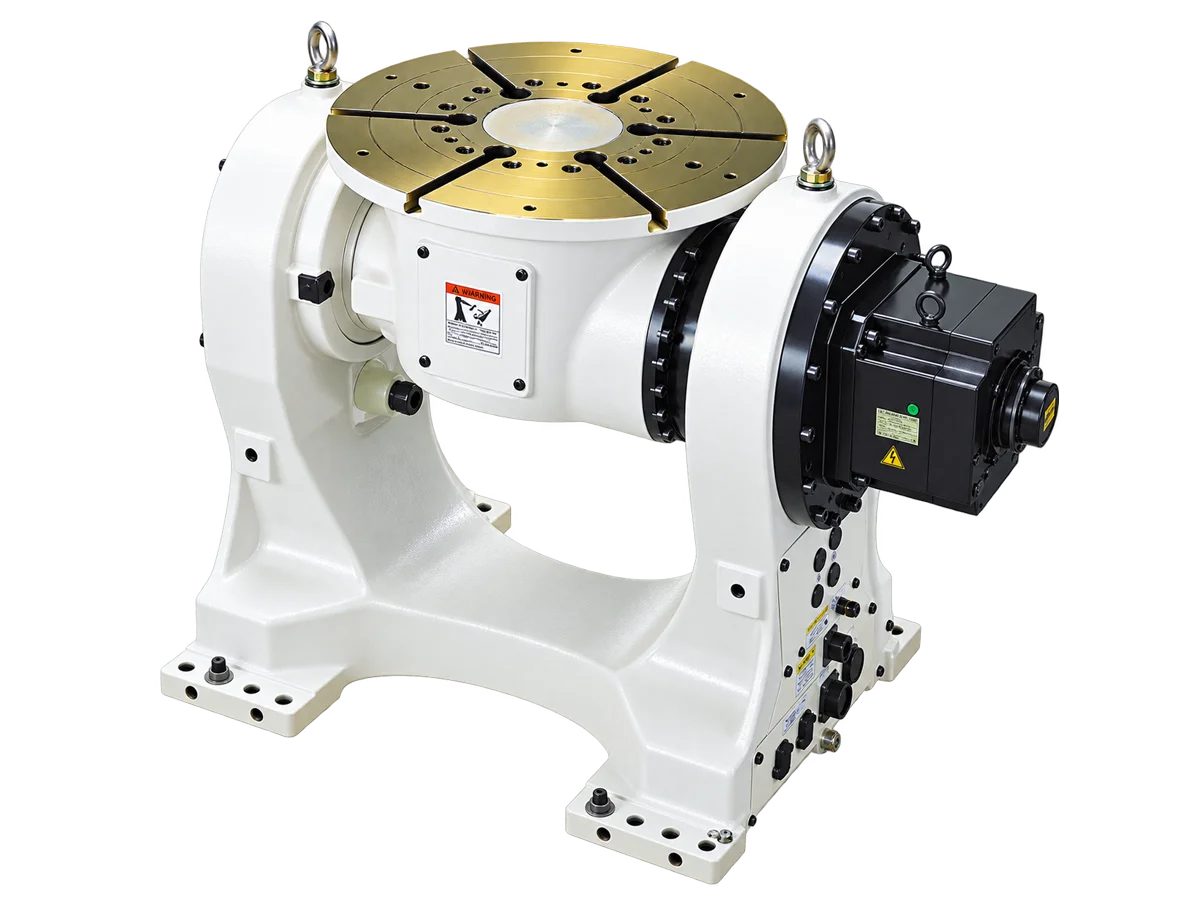

PF300
Dual-axis tilt-and-rotate positioning to improve weld access and workpiece orientation.
Load capacity: 300 kg
Enquire

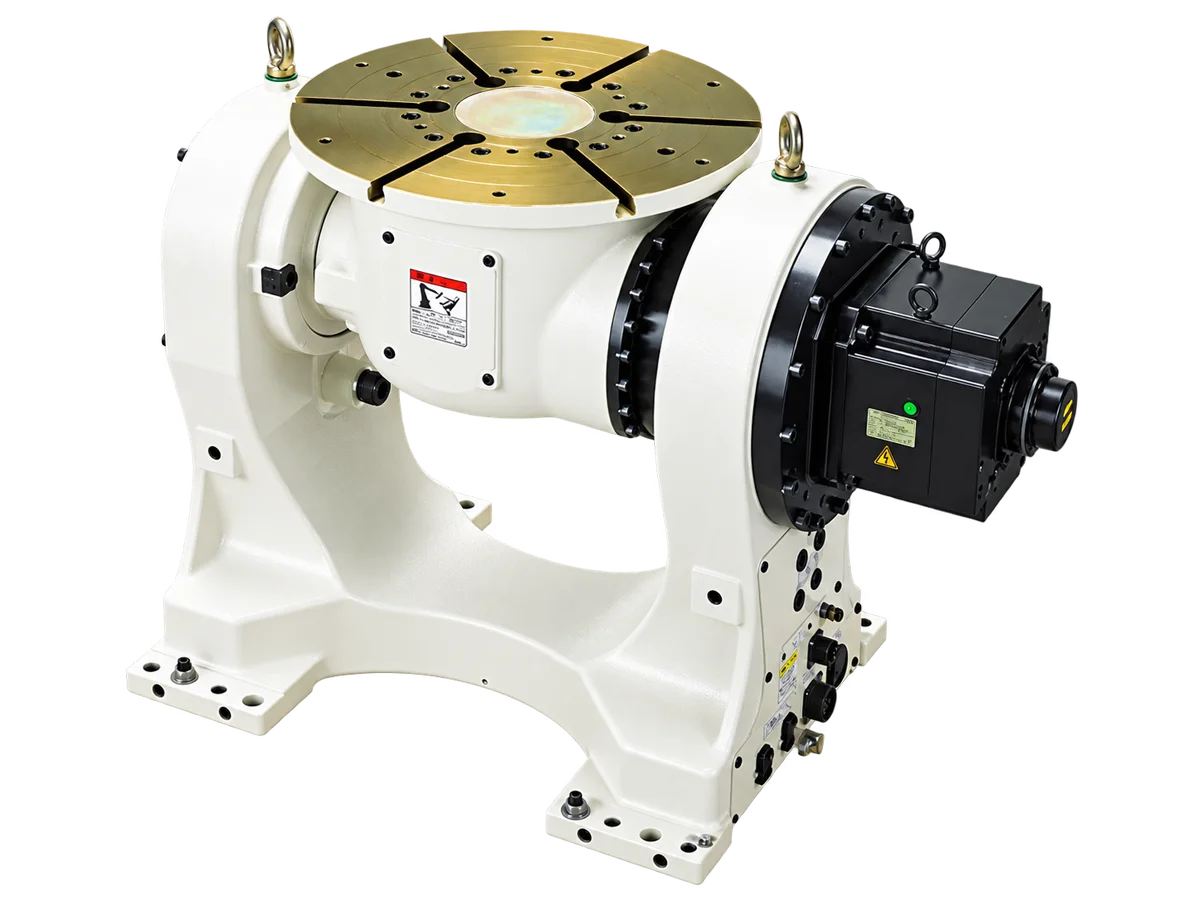

PF500
Dual-axis tilt-and-rotate positioning to improve weld access and workpiece orientation.
Load capacity: 500 kg
Enquire

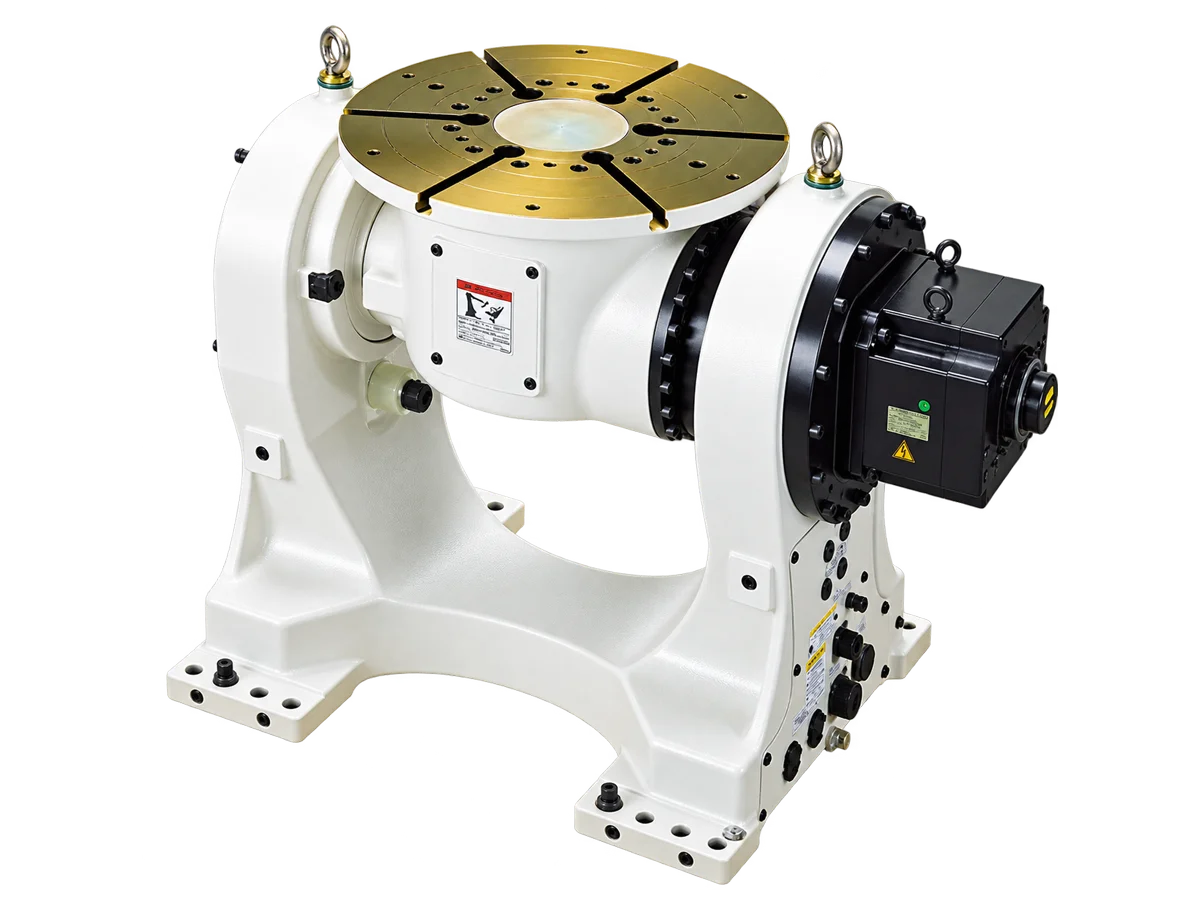

PF1000
Dual-axis tilt-and-rotate positioning to improve weld access and workpiece orientation.
Load capacity: 1,000 kg
Enquire
MULTI-STATION WELDING
Turntable Positioners
Index workpieces between stations to organise loading, welding and unloading within a robotic welding cell.
Turntable / Indexing Positioners
Turntable indexing can support loading and unloading at one station while another station is welding, depending on cell configuration.
Solution category: Multi-station indexing
Enquire
EXTEND THE WORKING ENVELOPE
Robot Sliders & Linear Tracks
Integrated linear travel extends robot access along the welding cell, supporting larger workpieces and multiple workstations.

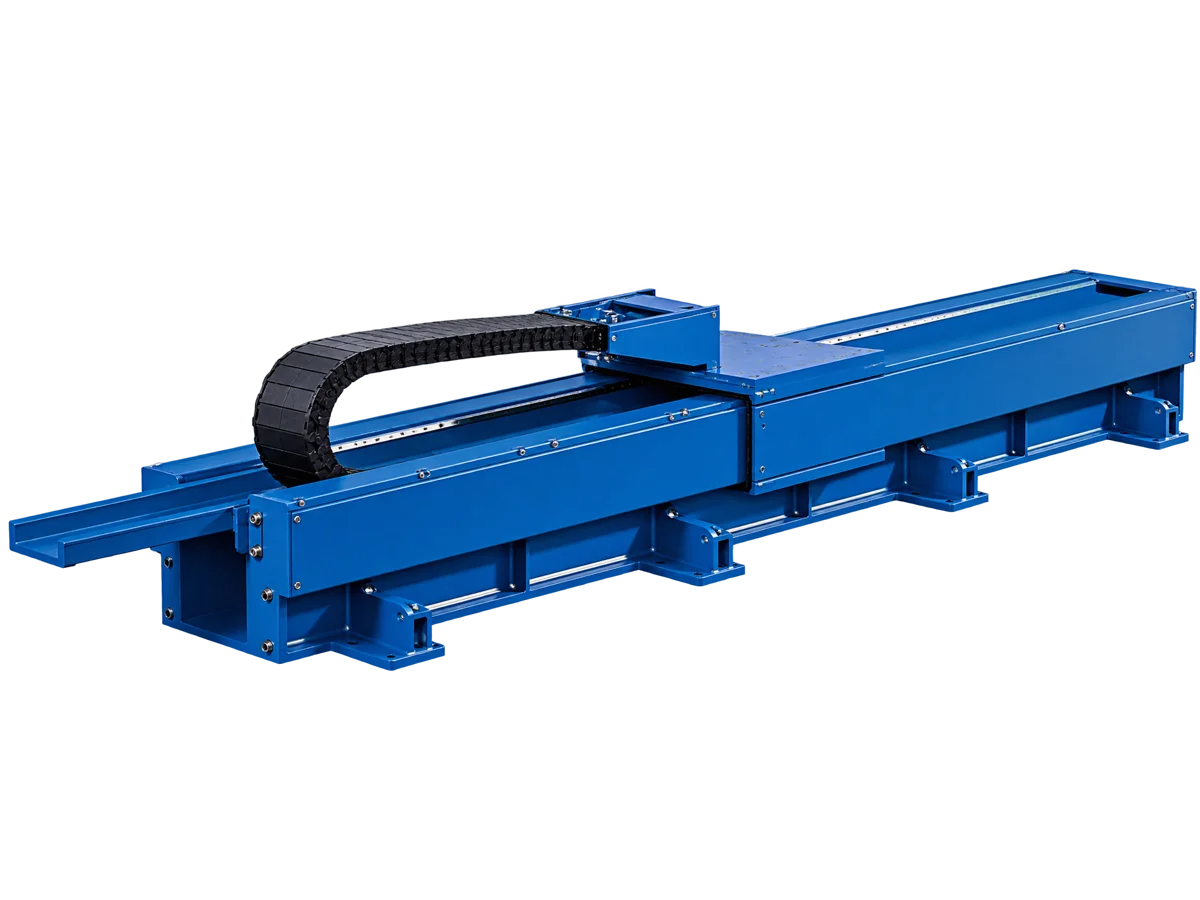

Robot Linear Track Systems
Extend the working envelope of your robotic welding system with integrated linear travel solutions. Robot sliders enable welding robots to move along an additional axis, providing greater reach, improved flexibility and access to larger workpieces or multiple workstations.
- Extended robot working envelope
- Increased access to large and long workpieces
- Flexible integration into robotic welding cells
- Coordinated motion with compatible OTC DAIHEN controllers
MOVE AS ONE SYSTEM
Integrated Coordinated Motion
Bring robot, workpiece and travel-axis movement together around the welding process.
Synchronised Movement
Coordinated robot and external-axis movement helps maintain the relationship between the torch and workpiece as the system moves, improving weld accessibility and positioning flexibility.
Integrated Programming
Compatible OTC controllers bring robot and external-axis programming together in appropriately configured systems. Select positioners, travel axes and controls to suit the application and required system compatibility.
Discuss Positioners & External Axes
Talk to our team about workpiece positioning, robot travel and coordinated motion for your welding application.
